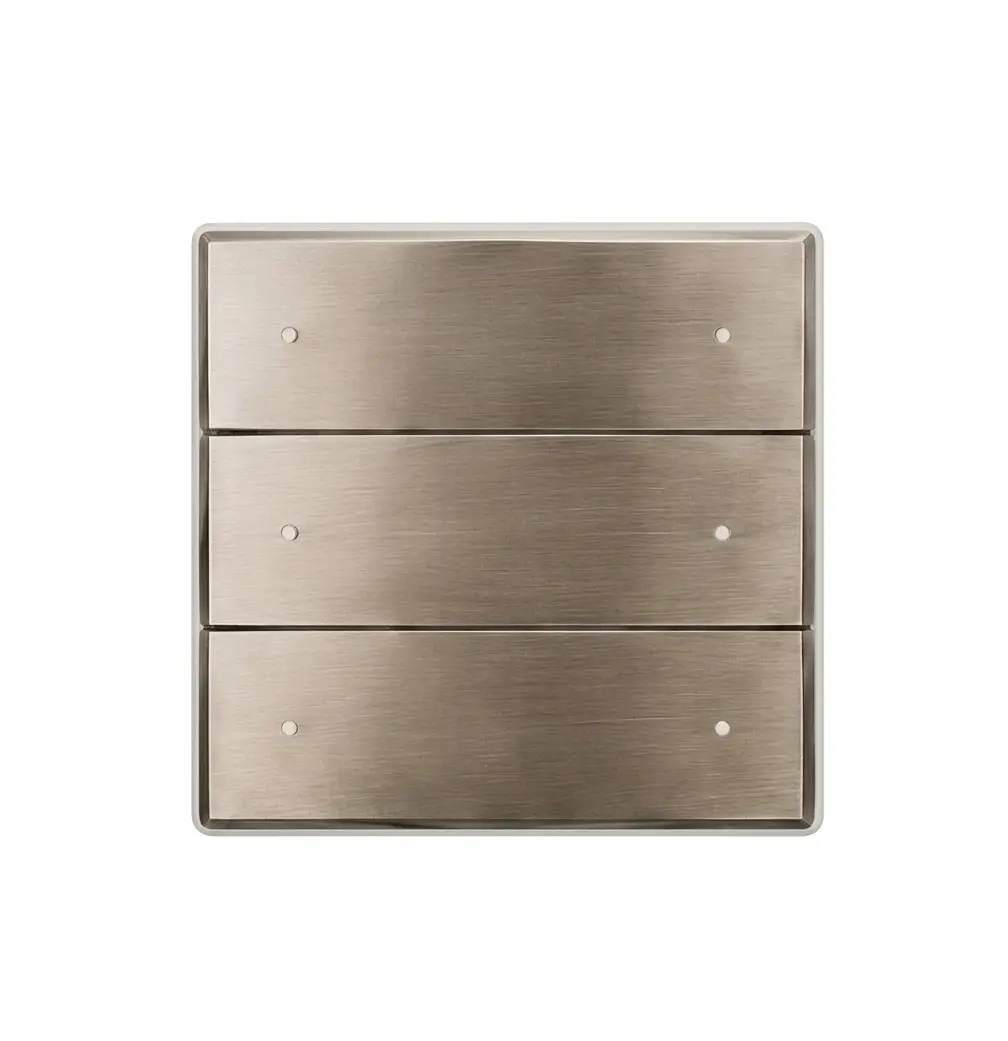

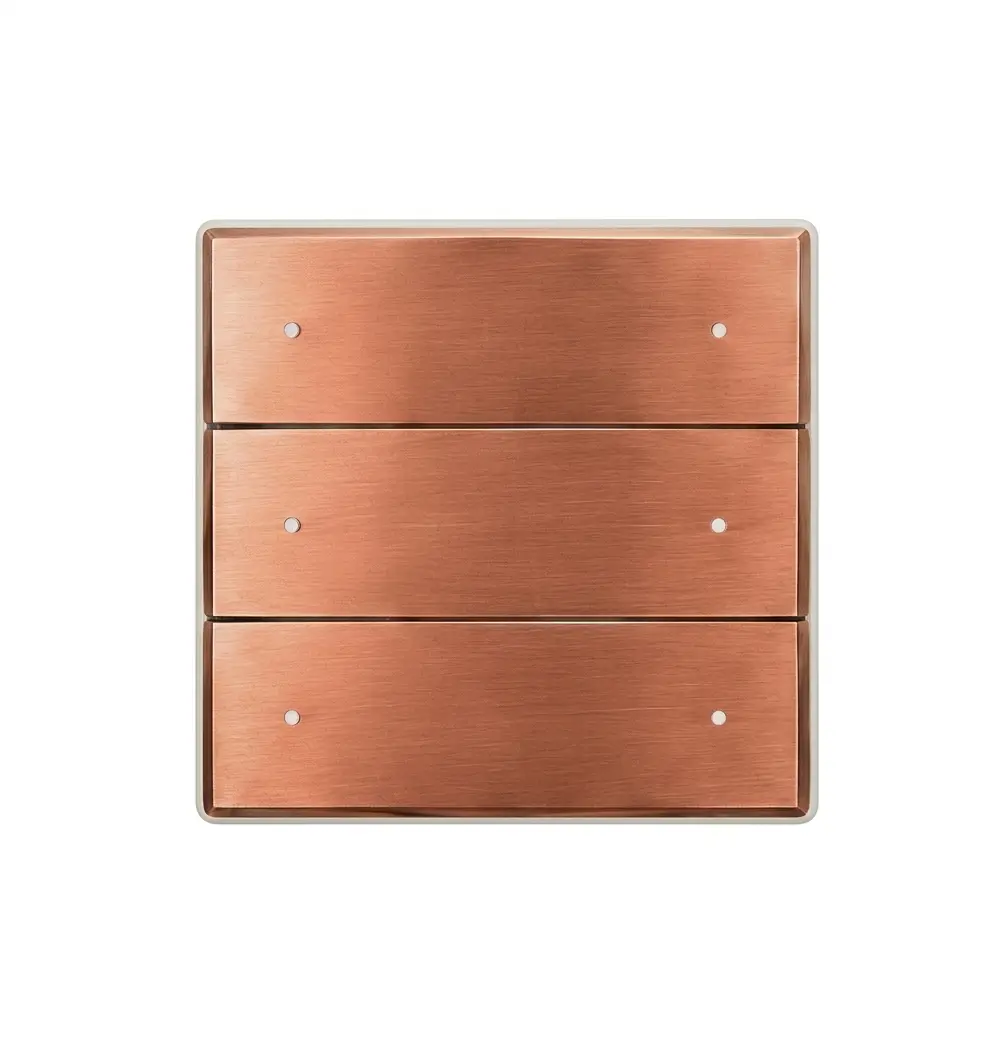

A8 KNX Smart Panel
The GSS A8 Series KNX Smart Panel offers a modern, minimalist approach to room control. Featuring premium metal finishes and a timeless design, it provides intuitive control for lighting, shading, and climate systems.
Key Features
- A8 Series complete range with 1, 2, 3, and 4 Gang options
- Flexible button configurations: 2, 4, 6, or 8 Buttons
- Elegant by design with premium metal finishes and timeless style
- Standard finishes: Rose Gold Brush, Tea Drawing, Gong Brush, Dazzling Wire Drawing, Gold Brush
- Standard finishes: Cooper Brush, Bronze Brushed Aluminium, Black Color Brush, Bronze Wire Drawing
- Custom RAL color available or special finish on request
- Customization options: Any RAL Color, Matte or Glossy, Brushed, Satin, or Mirror Finish
- Logo engraving available (GSS or Project Logo)
- Tailor-made solutions for Residential, Hospitality, and Commercial Projects
- Ultra-slim profile design (86 x 86 x 10.5 mm)
- Aluminium alloy frame with metal buttons
- KNX bus connectivity with KNX Data Secure (Individual FDSK)
- Full parameterization via ETS (ETS5 / ETS6)
- Integrated temperature sensor with calibration
- Optional humidity sensor on request
- Internal logic functions: AND, OR, NOT, Timers
- Multiple main functions: Switching (On/Off/Toggle), Dimming (Relative/Absolute)
- Blinds and curtains control (Up/Down/Stop/Slat Control)
- Scene Recall and Save functions
- Value sensing and sending (1bit, 0-100%, 2byte)
- Multi-function support (Up to 8 functions per button)
- Button and Rocker Mode configuration
- Individual button Lock and Disable options
- Configurable RGB status LED per button
- Day and Night LED brightness adjustment
- Alarm and status indication support
Technical Specifications
| Product Series | GSS A8 KNX Smart Panel |
| Models | A8-1G (2 Buttons), A8-2G (4 Buttons), A8-3G (6 Buttons), A8-4G (8 Buttons) |
| Dimension (W x H x D) | 86 x 86 x 10.5 mm |
| Mounting | Standard 86 junction box |
| Material | Aluminium alloy frame, metal buttons |
| Finish | Multiple premium finishes or custom (RAL) |
| Operating Voltage | 24 - 30 V DC (KNX bus) |
| Bus Current | < 12 mA @ 30 V |
| Auxiliary Power Supply | Not required (bus powered) |
| Standby Power Consumption | < 360 mW |
| Connection | KNX bus connection terminals |
| Operating Temperature | -5°C to +45°C |
| Storage Temperature | -25°C to +55°C |
| Transport Temperature | 5°C to +70°C |
| Humidity | < 93%, non-condensing |
| Protection Class | IP20 (indoor use) |
| KNX Standard | KNX TP (S-mode) |
| KNX Data Secure | Yes (Individual FDSK) |
| ETS Support | ETS5 / ETS6 |
| Application Program | via ETS (if supported) |
| Firmware Update | KNX certified (official) |
| Certification & Compliance | CE, RoHS |
| Temperature Sensor | Yes (with calibration) |
| Humidity Sensor | Optional (on request) |
| Internal Logic Functions | Yes (AND / OR / NOT / Timers) |
| Main Functions | Switching, Dimming, Blinds/Curtains, Scene, Value Sensing, Multi-Function |
| Button Modes | Button / Rocker Mode, Individual Lock / Disable |
| LED Features | RGB Status LED per Button, Day / Night Brightness Control |
| Measurements | Temperature Measurement, Optional Humidity Measurement |
